Maintaining a stable front fork is critical for safe and responsive bike handling. If you’re experiencing clunking, looseness, or play in your headset—especially when braking or riding over rough surfaces—it may be time to adjust your top cap bolt.

This article walks you through how to properly tighten the top cap bolt on a threadless headset, ensuring your handlebar and fork remain solid and movement-free.

🧰 Tools You’ll Need

4mm or 5mm Allen key (depending on your stem bolts and top cap bolt)
Torque wrench (recommended for final tightening)
Clean rag

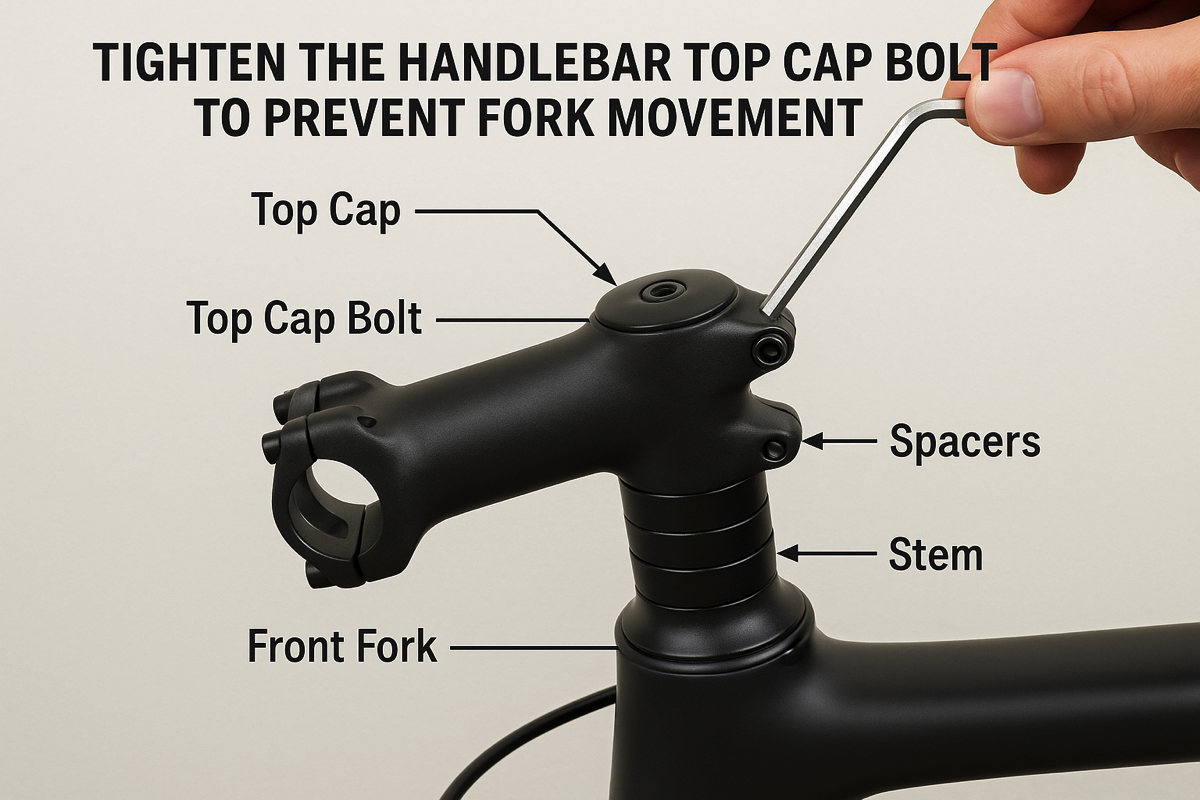

🔎 Understanding the Top Cap Bolt’s Role

The top cap bolt is part of a threadless headset system. Contrary to what some may believe, the top cap does not hold the stem in place during riding. Instead, its job is to:

Preload the headset bearings.
Compress the stack of spacers, stem, and headset.
Eliminate play between the fork and frame.

Once tightened properly, the stem bolts are what actually clamp the steerer tube and maintain the headset preload.

✅ Step-by-Step Instructions

1. Check for Movement

Before making adjustments:

Hold the front brake and gently rock the bike back and forth.
If you feel a clunk or knock from the headset area, there is likely play in the system.

2. Loosen the Stem Bolts

Use your Allen key to loosen (not remove) the stem bolts on the side of the stem that clamp it to the fork’s steerer tube.
This allows the top cap to pull the fork upwards and compress the system.

📝 Tip: Loosen both bolts evenly, about half a turn to a full turn each.

3. Tighten the Top Cap Bolt

With the stem bolts loose, use your Allen key to tighten the top cap bolt.
Tighten slowly, one-quarter turn at a time, and check for play by rocking the fork.
Stop once the movement is gone and the headset feels snug.

❗️Caution: Do not overtighten. Over-compressing can damage headset bearings or cause stiff steering. Recommended torque: 1.5–2.5 Nm, or snug with two fingers on the short end of an Allen key.

4. Align the Stem

Make sure your stem is aligned with the front wheel.
Look from above or straddle the top tube to ensure alignment.

5. Tighten the Stem Bolts

Re-tighten the stem bolts evenly.
If using a torque wrench, check the manufacturer’s spec (typically 5–6 Nm).
Alternate between bolts in small increments to maintain even pressure.

6. Final Check

Hold the front brake and rock the bike again.
There should be no movement in the headset or fork.
Turn the handlebars left and right: it should feel smooth, with no tight spots.

🧼 Optional: Clean & Inspect

While you’re at it:

Wipe down the area to remove dirt or debris.
Check for any corrosion or damage to the steerer tube, spacers, or stem.

🔁 Maintenance Frequency

Check headset preload:

Every few months.
After any crash or impact.
After disassembling or transporting your bike.

🛠 Troubleshooting

Problem	Likely Cause	Solution
Play persists after tightening	Stem bolts weren’t loosened enough	Loosen stem bolts more and retry
Steering feels stiff	Over-tightened top cap	Loosen top cap slightly
Knock returns quickly	Loose stem bolts or damaged headset	Check torque; inspect bearings

🧠 Final Thoughts

Tightening the top cap bolt is a simple yet essential part of regular bike maintenance. Keeping your headset properly preloaded not only improves handling but also protects your frame and fork from long-term damage.

When in doubt, or if you’re dealing with a carbon steerer tube, use a torque wrench and follow manufacturer specifications closely.

Ride safe and stay dialed in! 🚴
